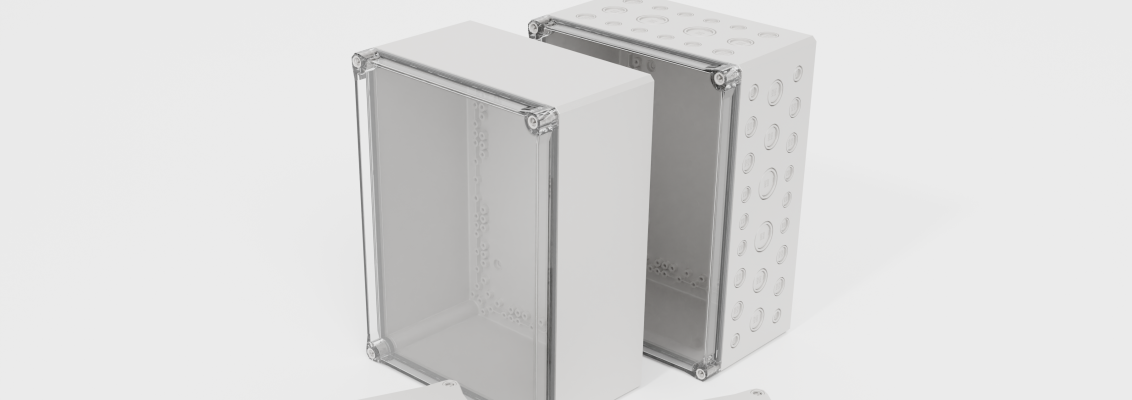

New MBI-L Enclosures
MULTI-BOX has Expanded their MBI Enclosure Series!
Companies in the machine and system engineering or renewable energy sectors, particularly solar and wind power, need durable and spacious enclosures for installing and protecting electronic components. The new MBI-L enclosures offer even more space for components and have a robust design suitable for demanding industrial environments. The enclosures ensure safety and operation of equipment even in challenging environments.
All MBI enclosures from the manufacturer are entirely produced in their own factory in Germany, from the material purchasing to the final assembly. This guarantees an efficient production process and good availability of the products. The popular MBI range has been extended with four new enclosure sizes in grey RAL 7035. In addition, the smallest and largest enclosure in the MBI-L range is also available in black RAL 9005.
MBI-L Enclosure Features
- Systematic focus on requirements in industrial installations
- Suitable for use in challenging outdoor applications
- Enclosure bases with metric pre-formed knockouts or plain side walls
- Knockouts at the backside of the enclosure base for cable entry from the rear
- Improved knockout design for a defined positioning of the knockout tool
- Multiple fixing points in the base of the enclosure
- Low weight compared to enclosures made of aluminum or stainless steel
- High stability thanks to optimized wall thicknesses
- Corrosion-free plastic cover screws
- Various fastening options on walls or machines
- Completely recyclable
Technical Information
- Protection class IP66
- Seamlessly foamed-in 2-component polyurethane gasket
- Impact resistance IK08 (DIN EN 50102:1997-09)
- Made of glass fiber reinforced polycarbonate
- UV-resistant (UL 746C F1)
- Self-extinguishing (UL 94 V0) in color grey and black
- Flammability classification UL 94 V0 with grey and black cover
- Flammability classification UL 94 V2 with transparent cover
Suitable Accessories for Functional Upgrades
MULTI-BOX offers a range of accessories that enable MBI-L enclosures to be adapted to meet the desired requirements.

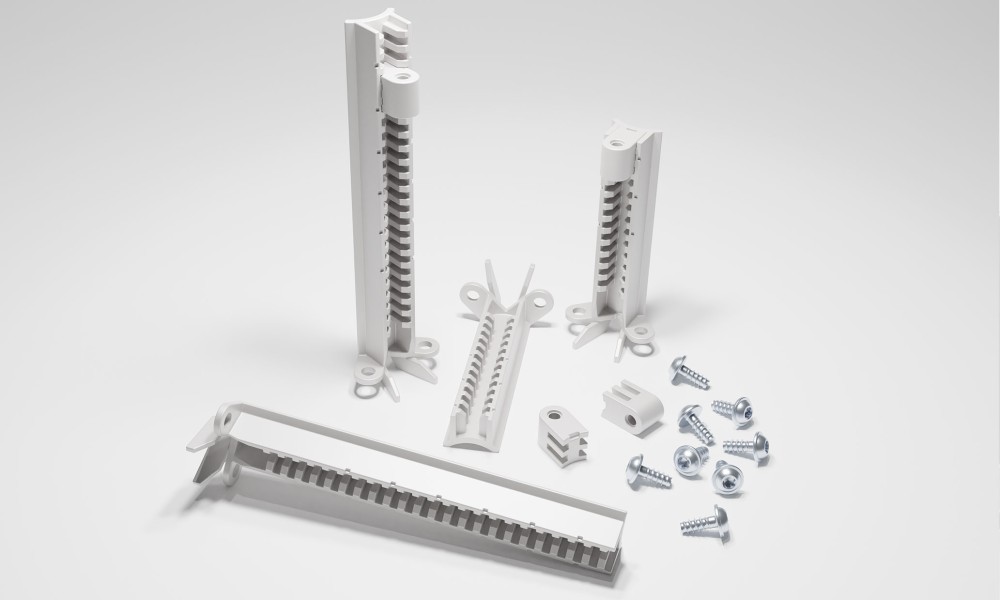

Level Adapter MBI-L
Adapters made of glass fiber-reinforced polycarbonate allow flexible installation of components at different levels in the enclosure base using a mounting plate. They are also excellent for installing front panels.
The fastening element can be inserted at any height of the adapter bar to ensure a perfect position.

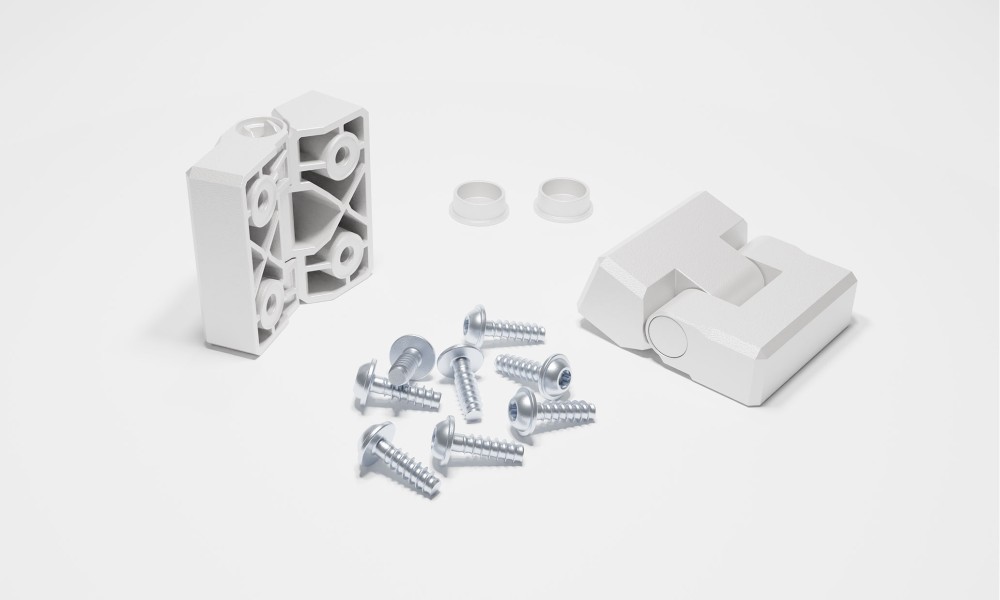

External Hinges MBI-L
MBI-L enclosures are equipped with robust hinges for quick and safe access for maintenance work and inspections. The hinges ensure that the enclosure cover is securely attached to the base and cannot be lost.
Like the enclosures, MBI-L hinges are made of glass fiber reinforced polycarbonate. The material is UV-stable, corrosion-resistant and self-extinguishing. The high protection class (IP66) of the enclosure remains unchanged thanks to the hinges installed.
More information about accessories, data sheets and technical drawings can be found on the manufacturer's website.
